Description

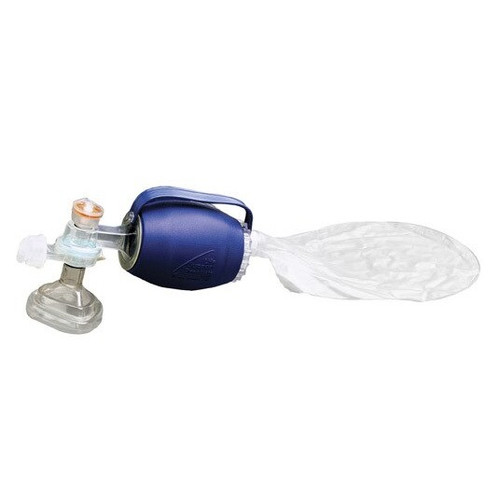

The Child Disposable Bag Valve Mask is a single patient use system for manual ventilation. The Child BVM offers accurate, dependable operation coupled with the ability to manually feel a patient’s respiratory response, all in a tamper-proof package for single patient use.
- Comes with a bag, patient valve, and 7 feet of oxygen tubing
- Comes with a pop-off relief valve, which pops off at 45 cm H20 max and can be overridden by the operator
- When specific repeatable concentrations of oxygen are required, the bag refill valve can be employed in conjunction with a blender
- When used as an oxygen supplemented source, this device also ensures high FIO2 concentrations on every bag compression no matter which clinical rate is employed
- Conserves gas in the process by operating only while the bag refills
Specifications:
- Bag Volume: Child: 665 ml
- Operating Temperature: –30°F to 125°F
- Storage Temperature: –40°F to 160°F
- Materials:
- Bag: Thermoplastic rubber (a Latex-free synthetic material)
- Mask: Alpha PVC 3006-95
- Deflector: High density polyethylene
- Valve and Oxygen Enrichment Ports: Phillips 66 KRO3
Included Items:
- Disposable Cuffed Mask Size Child
- Bag Reservoir
- Patient valve
- 7' Oxygen tubing
Model Number: L670-100
Extra Information
Brand:
Allied Healthcare Products
